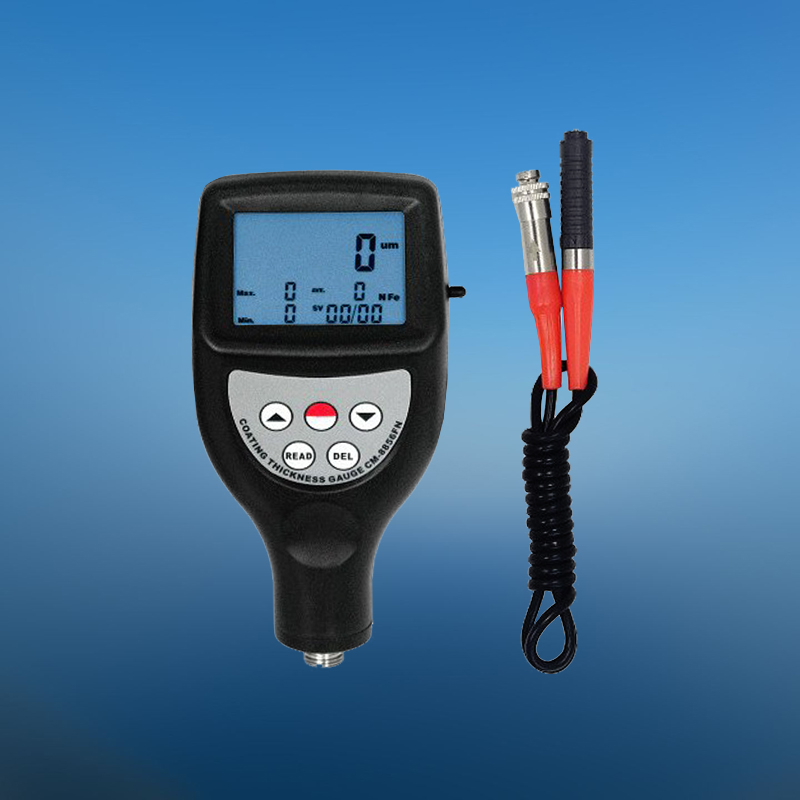

MODEL CM-8856 COATING THICKNESS GAUGE
Features:
-
It
meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and
BS. It can be used both in the laboratory and in harsh field conditions.
-
The
F probes measure the thickness of non-magnetic materials (e.g. paint,
plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic
materials (e.g. iron, nickel etc.). It is often used to measure the
thickness of galvanizing layer, lacquer layer, porcelain enamel layer,
phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.
-
The
N probes measure the thickness of non-magnetic coatings on non-magnetic
metals. It is used on anodizing, varnish, paint, enamel, plastic coatings,
powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
-
Automatic substrate recognition.
-
Manual or automatic shut down.
-
Two
measurement mode: Single and Continuous
-
Wide
measuring range and high resolution.
-
Metric/Imperial conversion.
-
Digital backlit display gives exact reading with no guessing or errors.
-
Can
communicate with PC computer for statistics and printing by the optional
cable.
-
Can
store 99 groups of measurements.
-
Statistics is available.
Technical Parameters:
Display: 4 digits LCD, backlight
Range: 0~1250 μm / 0~50mil (other ranges can be specified )
Min. radius work piece: F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Min. measuring area: 6mm
Min. Sample thickness: 0.3mm
Resolution: 0.1 μm (0~99.9μm); 1 μm (over 100μm)
Accuracy: ±1~3%n or 2.5 μm or 0.1mil (Whichever is the greater)
Battery Indicator: Low batter indicator.
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temperature 0~50℃
.
Humidity <95% .
Size: 126 x 65 x 35 mm (5.0x2.6x1.6 inch)
Weight: about 81g (not including batteries)
Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1 set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories:
RS-232C
cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
|
|
