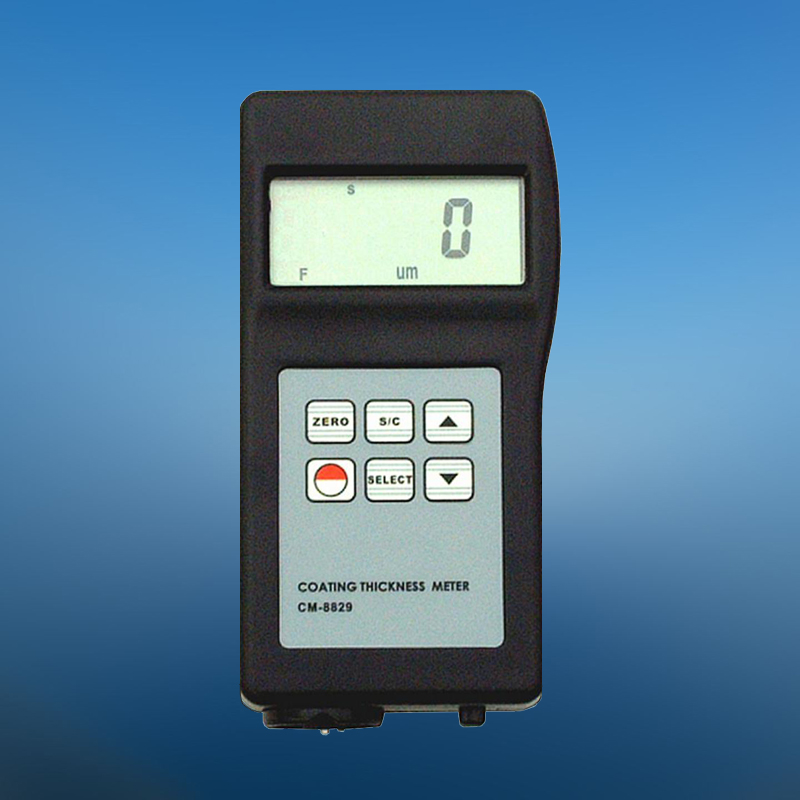

MODEL CM-8829 COATING THICKNESS GAUGE
Application:
This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. It can use magnetic induction probe to measure the non-magnetic coating thickness (such as paint, powder, plastic, rubber, composite material, phosphorized layer, chrome, zinc, plumbum, aluminium, molybdenum, tin, cadmium, ceramic, enamel and oxidative layers etc.) on magnetism metal substrate (such as steel, iron), and can also use eddy current probe to measure the non-conductive coating thickness (enamel, rubber, paint, plastic layers) on non-magnetism metal substrate (such as copper, aluminum, zinc, tin and etc).
Technical Parameters:
In-built probe (s) Operating principle: magnetic induction/eddy current (F/NF) Measuring range: 0-1250um/0-50mil Resolution; 0.1/1 Accuracy: ±1-3%n or ±2.5um Min. measuring area: 6mm Min. sample thickness: 0.3mm Battery indicator: low battery indicator Metric/ imperial: convertible Power supply: 4x1.5V AAA (UM-4) battery Auto power off Operating conditions: 0-+45℃ (32℉-104℉), ≤90%RH Dimensions: 126 x 65 x 27mm Weight: 81g (not including battery)
Optional accessories:
Other range 0-200um to 15000um
|
||||
