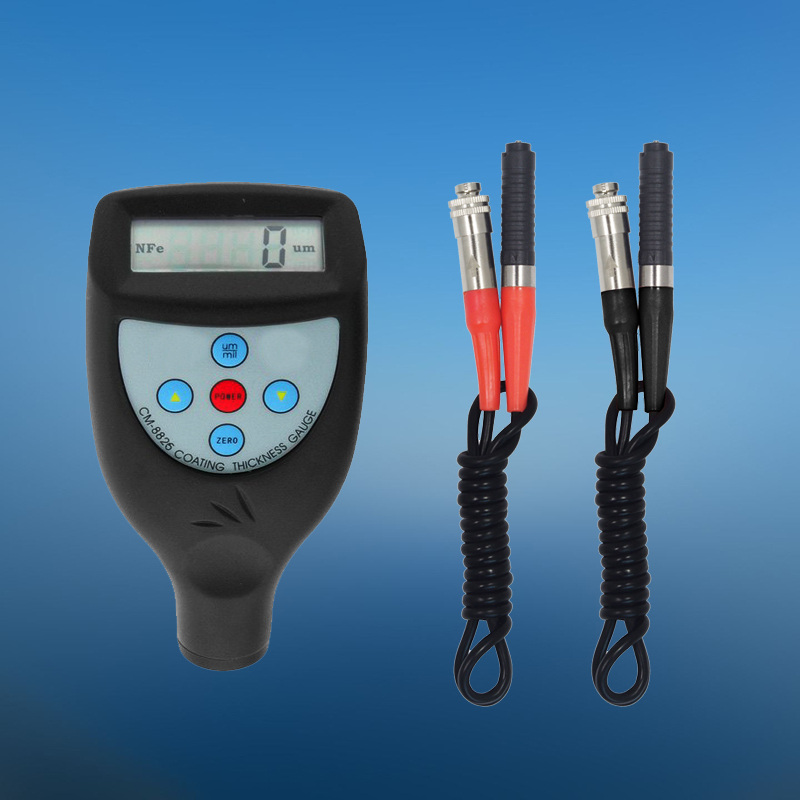

MODEL CM-8826 COATING THICKNESS GAUGE
Application:
This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Technical Parameters:
With separate probe (s) Operating principle: magnetic induction/eddy current (F/NF) Measuring range:0-1250um/0-50mil Resolution; 0.1/1 Accuracy: ±1-3%n or ±2.5um Min. measuring area: 6mm Min. sample thickness: 0.3mm Battery indicator: low battery indicator Metric/ imperial: convertible Power supply: 4x1.5V AAA (UM-4) battery Auto power off Operating conditions: 0-+45℃(32℉-104℉), ≤90%RH Dimensions: 126 x 65 x 27mm
Weight: 81g (not
including battery) Optional accessories:
other range 0-200um to 15000um
|
||||
