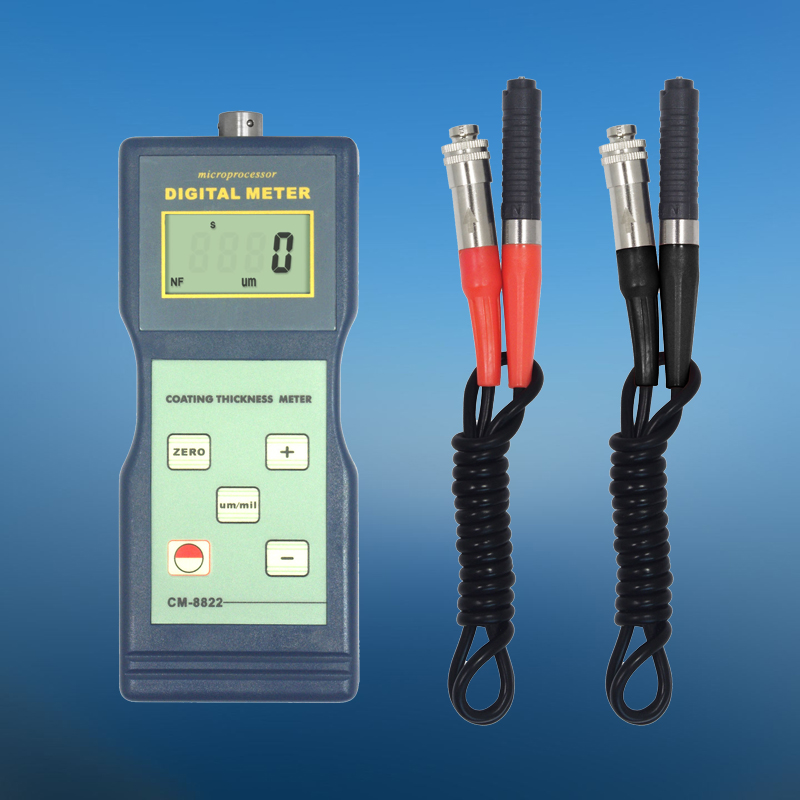

MODEL CM-8822 COATING THICKNESS GAUGE
Application:
This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, ship building, power station, and machine manufacturing.
Technical Parameters:
Operating principle: magnetic induction/eddy current (F/NF) Measuring range: 0-1000um Resolution; 0.1/1 Accuracy: ±1-3%n or ±2.5um Min. measuring area: 6mm Min. sample thickness: 0.3mm Battery indicator: low battery indicator Metric/ imperial: convertible Power supply: 4x1.5V AA (UM-3) battery Auto power off Operating conditions: 0-+45℃(32℉-104℉), ≤90%RH Dimensions: 160 x 68 x 32 mm Weight: 250g (not including battery)
Optional accessories:
Other range 0-200um to 15000um
|
||||
