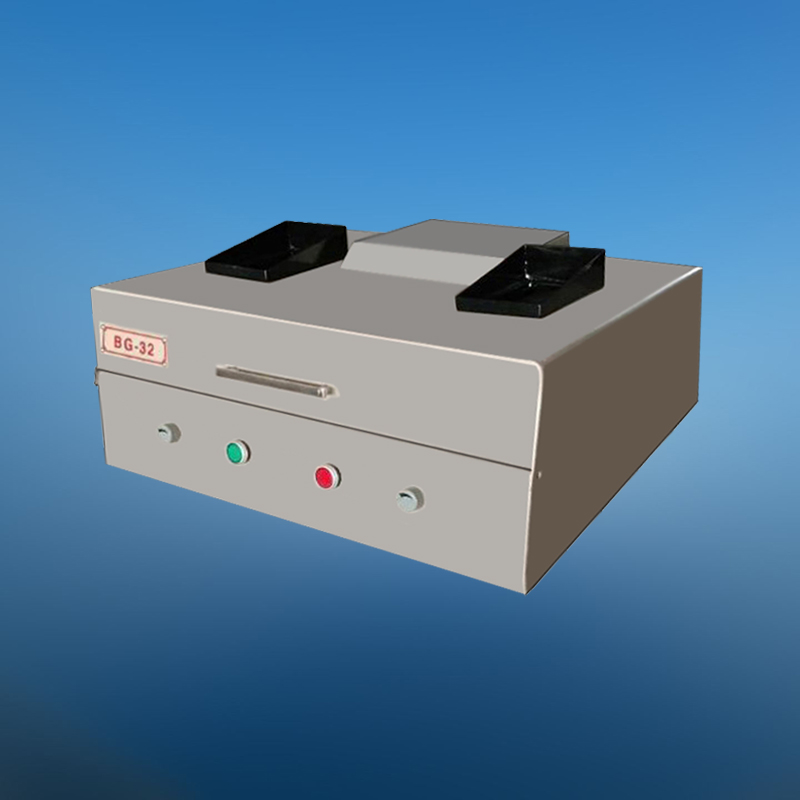

MODEL BG-32 METALLOGRAPHIC SPECTRUM BELT SPECIMEN GRINDING MACHINE
Model BG-32 Belt surface grinding machine is of new generation design, made according to the international standard and advanced process technique. It adopts sand belt to grind and polish the specimen. The different belts can be changed swiftly. This machine can be used to replace the disc grinder and manual type abrasive paper grinding. It only takes 1-2 minutes to for each belt to finish the operation. For the grinding of spectroscopy specimen, it is very economic to save time, labour and abrasive paper. This machine can be widely used in laboratories, researching institutes and factories.
Technical specifications
Distance between the centers of two rollers: 255mm Equipped with water cooling system Sand belt: 920mm x 100mm (L x W) Rotating speed: 1400 rpm Surface speed: 768 rpm Motor: 550W Power supply: 380V, 3-phase, 50Hz Dimensions: 600 × 550 × 310 mm
Standard accessories
Water inlet pipe: 1 pc. Water outlet pipe: 1 pc. Hexagon wrench: 2 pcs. Wrench: 2 pcs. Sand belt: 2 pcs. |
||||
