MODEL

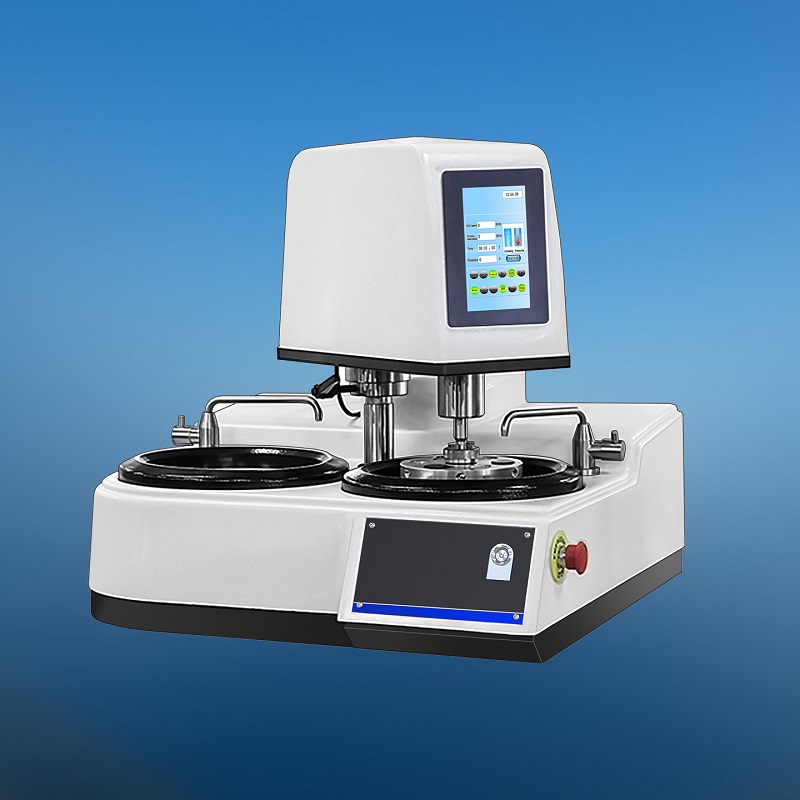

AUTOPOL 2000X AUTOMATIC GRINDING & POLISHING MACHINE
Model
AUTOPOL 2000X is
a kind of double discs automatic metallographic specimen grinding and polishing
machine equipped with automatic polishing head and stepless speed changing.
It
features advanced performance and high degree automation and
can finish
the whole process of rough grinding, fine grinding, rough polishing and
finishing polishing automatically.
It is the necessary metallographic specimen preparing instrument for using in
factories, scientific research institutes and laboratories of colleges.
Features
-
Central force
loading mode, fix six samples at one time, complete all grinding and
polishing processes, and ensure the complete plane of each sample.
-
Independently
control the grinding and polishing disc and sample disc: control all
grinding and polishing parameters such as rotating speed, grinding and
polishing time, rotation direction, water valve closing, etc.
-
Touch screen
interface: it is convenient to set grinding and polishing parameters,
intuitive status display and simple operation.
-
The loading force
can be adjusted in operation, flexible and convenient.
-
The on-off of
water is controlled by solenoid valve.
-
By easily
replacing the magnetic anti sticking disc, all processes such as rough and
fine grinding, rough and fine polishing of various samples can be completed.
One disc is equivalent to several discs.
-
High precision,
stable operation and low noise.
-
Thickness control
of sample grinding layer: accurately control the grinding amount of samples
and grind them to the specified position (Optional).
-
External dispenser control the
dropping speed and dropping material (Optional)

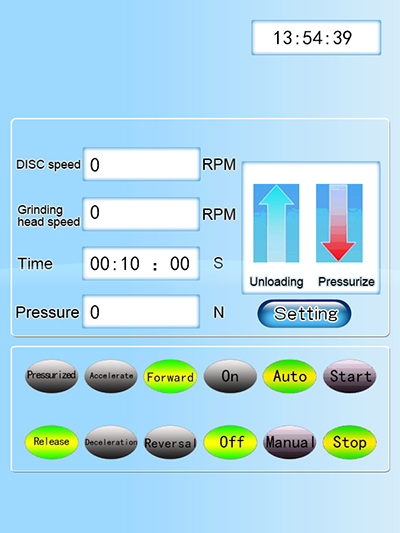

Operation interface
Technical Specifications
Working disc diameter:
254mm (with magnetic disc)
Grinding disc rotation
speed: 100~1000
rpm (forward and reverse rotation can be switched)
Grinding head rotation speed: 0~100 rpm
Sample preparation time range: 0~9999s
Loading force range: 30~200N
Loading force mode: Central
force
loading
Sample holder:
Ø 30mm, 6-hole
(optional Ø 40~50mm,
4-hole, or customized)
Power Supply: AC 220V,
50Hz,
single phase
Motor power: 0.75kg
Overall dimension (L x W
x H): 760
x 730 x 700mm
Weight: 100kg
Standard
accessory
|
Name |
Qty. |
Name |
Qty. |
|
Waterproof ring |
2 pcs. |
One side sticky Abrasive
paper (250mm) 320# |
10 pcs. |
|
Sample holder |
1 set |
One side sticky Abrasive
paper (250mm) 1000# |
10 pcs. |
|
Inner hexagon spanner 4mm |
1 pc. |
One side sticky polishing cloth (250mm), velours |
1 pc. |
|
Inner hexagon spanner 5mm |
1 pc. |
Anti-sticky disc (250mm) |
2
pcs. |
|
Input-water pipe 8mm |
1 pc. |
Magnetic working
disc (250mm) |
2 pcs. |
|
Output-water pipe 25mm |
1 pc. |
Hook |
1 pc. |
|
Power cable |
1 pc. |
Fast twist joint
SNZ08-04 |
1 pc. |
|
Data cable |
1 pc. |
Hose hoops 18-32 |
1 pc. |
|
Teflon tape |
1 pc. |
Triangle valve
Φ12.7mm |
1 pc. |
|
Diamond
suspension
polishing liquid,
6 micron, 200ml |
1
bottle |
Rubber pad with
strainer Φ12.7mm |
|
|
Polishing lubricating coolant blue 200ml |
1 bottle |
Filter piece Φ12.7mm |
4 pcs. |
|
Touch pen |
1 pc. |
Mounting
seat |
1 pc. |
|
Technical documents:
Machine manual, certificate,
packing list 1 share for each |
Optional
Accessory
|
Metallographic
grinding paper |
GSC250A |
-
100 pieces
/package
-
Material: black
carborundum
-
Sand
size:
P80# 120# 180# 320# 600# 800# 1000# 1200# 1500# 2000#
-
Size:
Φ250mm
-
Waterproof
and one side sticky, can be attached on the grinding plate
directly
|
|
Anti-sticky disc |
MAGNOMET |
-
Anti-sticky
disc:
5 pieces/box
-
Diameter:
Φ250mm
-
Surface coating
with Special anti-sticky layer, can attach the sticky paper and
polishing cloth directly, and easily replace without sticky
mark.
-
Can be reused
|
|
Polishing cloth |
FT250A |
-
Polishing cloth
10 pieces/package
-
Velvet
fabric(long floss) / canvas (short
floss)/ Woolen
cloth (short
floss)
/ silk cloth (no
floss)
-
Φ250mm
-
One
side sticky, can be attached directly on the grinding plate
|
|
Diamond grinding and
polishing liquid |
DSU |
-
Diamond grinding
and polishing liquid, 500ml/bottle
-
Diamond
suspending in the liquid, can be dropped automatically or
watering pot, Uniformly distribution
-
Size:
0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28,
40micron,
for different materials
|
|
|
