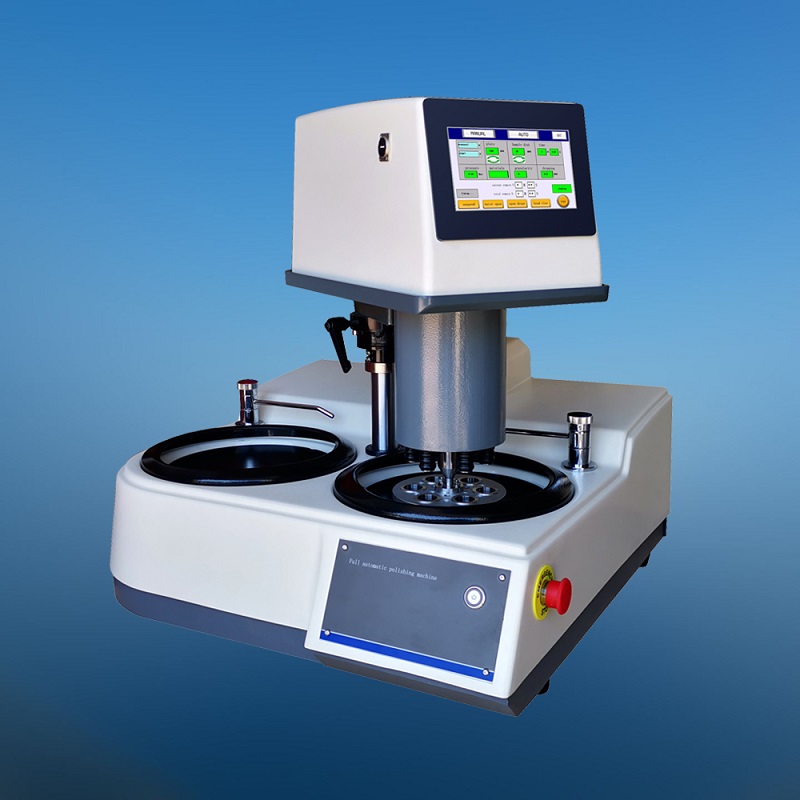

MODEL AUTOPOL
2000
AUTOMATIC
METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE
Features
-
Multi-usage, one machine to
complete the whole process of metallographic rough grinding, fine grinding,
rough polishing and fine polishing.
-
Single point pneumatic
holding, no need for sample clamping.
-
Six pieces of Φ30mm samples
can be polished simultaneously.
-
PLC independent control for
the grinding disc and grinding head. The grinding & polishing parameters
like rotation speed, grinding & polishing time, rotation direction, water
valve on/off etc. can be set and automatically saved, easy to call.
-
Large touch screen interface,
convenient for parameter setting, intuitive state display and easy
operation.
-
Stepless speed changing for
both grinding disc and grinding head. The rotation direction is switchable
between FWD & REV.
-
PLC control for water supply
and grinding material dispenser.
-
Working mode:
(1) Automatic mode:
According to the sample materials
user’s habits, 30 groups of processes can be set and called. Each process can
contain 10 steps of process parameters (each process is corresponding to certain
grinding or polishing process. Process parameters: rotation speed of grinding
disc and polishing head, grinding and polishing time, etc.)
(2) Manual mode:
According to each grinding and
polishing process, 30 groups of process parameters can be set and called:
grinding disc and polishing head rotation speed, grinding and polishing time,
water supply on/off etc.
(3) Setting mode:
Set certain function of equipment
separately.
-
Magnetic anti-sticky disc can
be replaced easily and it can finish the rough grinding, fine grinding,
rough polishing and fine polishing for various samples continuously.
-
The water supply can be
controlled by electromagnetic valve. There is automatic water cleaning
device under grinding disc and it can clean the inside wall automatically.
-
Grinding head automatic
electromagnetic lock, no need for manual locking handle.
-
Multi-language interface is
available.
-
High accuracy, stable
running, low noise.
-
Grinding & polishing
dispenser is optional.
-
Operation by mobile remote
control device is optional.
Technical
specifications
Magnetic
grinding disc diameter:
250mm (optional 200mm, 230mm)
Sample holder: 6-hole,
Φ30mm
(Φ20mm,
or 3-hole,
Φ40-Φ50mm
is optional)
Grinding disc rotation speed: 100-1000 rpm
FWD & REV rotation directions can
be switched
Grinding head rotation speed: 30-200 rpm,
FWD & REV rotation
directions can be switched
Manual
mode: 30 groups of process parameters can be selected, and each group of
parameters can be set and called separately.
Automatic mode: 30 groups of process parameters, and each group of process
includes 10 steps of procedure parameters (automatic processing from step 1 to
step 10, each step has its independent group of procedure parameters).
Grinding
head locking method: Electromagnetic automatic locking.
Air
source pressure: no less than 0.6MPa
Power
supply:
220V, 50/60Hz, single phase, 2KW
Motor power: 750W
Overall
Dimensions: 760x 730 x 700 mm
Net
weight: 98Kg
Standard
accessory
|
Name |
Quantity |
Name |
Quantity |
|
AUTOPOL 2000 |
1 set |
Diamond suspension polishing liquid, 6 micron, 200ml |
1 bottle |
|
One side sticky Abrasive paper (250mm) 180# |
2 pieces |
One side sticky polishing cloth (250mm),
flocking (brown) |
1 piece |
|
One side sticky Abrasive paper (250mm) 800# |
2 pieces |
One side sticky polishing cloth (250mm),
canvas |
1 piece |
|
One side sticky Abrasive paper (250mm) 1000# |
2 pieces |
Anti-sticky disc (250mm) |
2
pieces |
|
Waterproof ring |
2
pieces |
Magnetic working plate (250mm) |
2 pieces |
|
Input-water pipe 8mm |
1 piece |
Power cable
(Aviation plug joint) |
1 piece |
|
Output-water pipe 25mm |
1 piece |
Data cable (Aviation plug joint) |
1 piece |
|
Hose hoops 18-32 |
1 piece |
Triangle valve Φ12.7mm |
1 piece |
|
Hook |
1 piece |
Teflon tape |
1 piece |
|
Rubber pad with strainer Φ12.7mm |
1 piece |
Fast twist joint SNZ08-04 |
1 piece |
|
Touch pen |
1 piece |
Filter piece Φ12.7mm |
4 pieces |
|
Technical documents: Machine manual, certificate,
packing list 1 share for each |
Optional
Accessory
|
Air pump (optional) |
|
Air pipe 6mmx3m (optional) |
|
Tablet PC (10.2”, 4GB+64GB WiFi) |
|
Metallographic
grinding paper |
GSC250A |
-
100 pieces
/package
-
Material: black
carborundum
-
Sand size: P80#
120# 180# 320# 600# 800# 1000# 1200# 1500# 2000#
-
Size: Φ250mm
-
Waterproof and
one side sticky, can be attached on the grinding plate directly
|
|
Anti-sticky disc |
MAGNOMET |
-
Anti-sticky disc:
5 pieces/box
-
Diameter: Φ250mm
-
Surface coating
with Special anti-sticky layer, can attach the sticky paper and
polishing cloth directly, and easily replace without sticky
mark.
-
Can be reused
|
|
Polishing cloth |
FT250A |
-
Polishing cloth
10 pieces/package
-
Velvet
fabric(long floss) / canvas (short floss)/ Woolen cloth (short
floss) / silk cloth (no floss)
-
Φ250mm
-
One side sticky,
can be attached directly on the grinding plate
|
|
Diamond grinding and
polishing liquid |
DSU |
-
Diamond grinding
and polishing liquid, 500ml/bottle
-
Diamond
suspending in the liquid, can be dropped automatically or
watering pot, Uniformly distribution
-
Size: 0.25, 0.5,
1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron,
for different material
|
|
|
