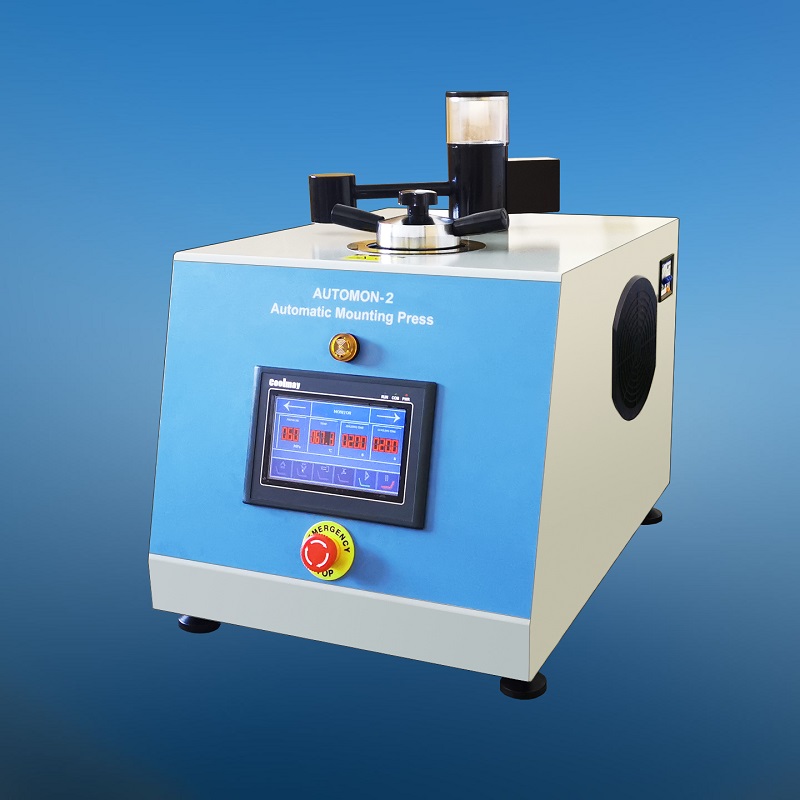

MODEL AUTOMON-2

AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS

      This AUTOMON-2 is a full-automatic metallographic specimen mounting press with the function of inlet and outlet water cooling. It is suitable for the thermal inlay of all materials (thermosetting and thermoplastic). After setting the inlay parameters such as heating temperature, holding time and pressure, put in the sample and automatically transport the mounting material, cover the gland, press the work button, and the automatic audible and visual alarm can be given after the inlay work is completed automatically, no operator is required to be on duty at the machine. It is the ideal sample preparing equipment to be used in factories, researching institutes and college laboratories.

Features

• Equipped with electro-hydraulic servo valve, which realized the precise pressure control of the mounting process..

• Equipped with automatic dosage feeding device, the mounting material can be filled in precisely.

• Equipped with cooling device and flow control valve, the cooling speed can be controlled in three modes: Fast, Medium and Slow.

• With the help of middle mould, two samples can be prepared at the same time, the preparation capacity is doubled.

• More than 500 groups of user-defined settings can be stored and recalled.

• Sound and light alarm will be given automatically after sample preparation is finished.

• It is applicable to the fabrication of porous and fragile samples

Operation interface

Technical specifications

Mould specification: Φ30mm (Φ22mm or Φ45mm is optional)

Pressure setting range: 50 ~ 600bar

Temperature setting range: room temperature ~ 180 ℃

Setting range of heat holding time: 0 ~ 9999 seconds

Setting range of cooling time: 0 ~ 9999 seconds

Sample preparation time: 10-15 minutes

Power of heating device: 1200W

Total power: 1500W

Power supply: Single phase, AC 220V, 50Hz

Dimensions: 60 x 50 x 60 cm

Net weight: 80Kg
