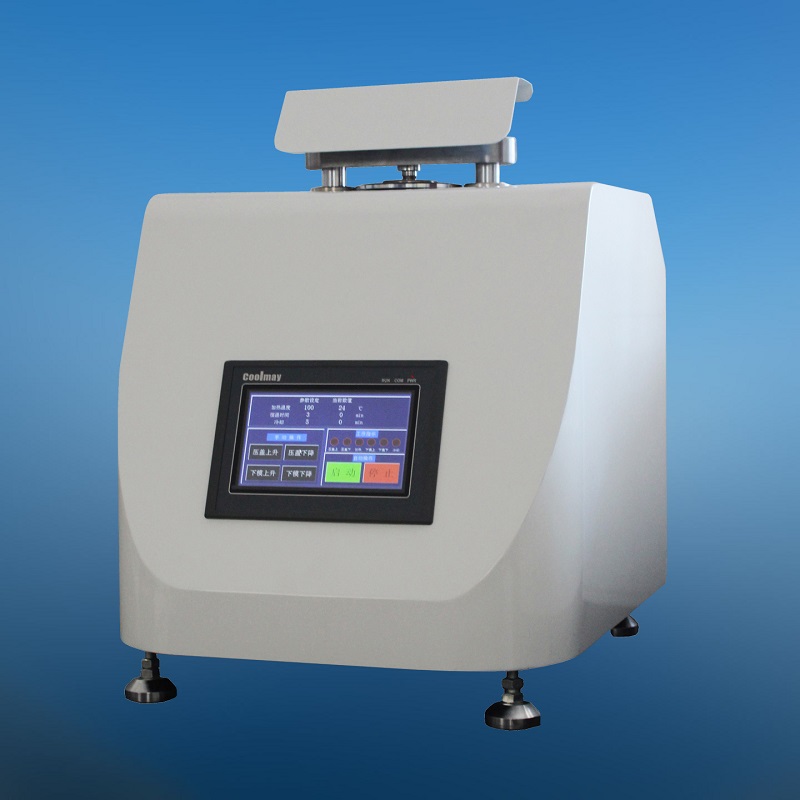

MODEL AUTOMON-1

FULLY AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS

        Model AUTOMON-1 automatic metallographic specimen mounting press is a kind of pneumatic and fully automatic mounting press, equipped with in-out water cooling system. It is suitable for the hot mounting process of thermo-hardening & thermoplastic materials. This machine can automatically heat, apply pressure and after sample preparation is finished, it can stop working, release pressure and then push out sample automatically. It is the ideal sample preparing equipment to be used in factories, researching institutes and college laboratories.

Features

• Simple structure, quick sample preparation

• Pneumatic pressure applying & releasing

• Automatic sample preparing, automatic sample pushing out

• Touch screen operation

• Cooling method: water cooling

• Three kinds of moulds of Ø22mm, Ø30mm, Ø45mm can be chosen at will

Technical specifications

Mould diameter: Ø22mm, or Ø30mm, or Ø45mm (choose one mould)

Heater: 1200W

Sample preparing time: 10-15 minutes

Temperature setting range: 0-200 ºC

Power supply: single phase, 220V, 50Hz

Dimensions: 380 x 350 x 420 mm

Net weight: 50 KG

Optional accessory

Pneumatic source: air compressor
