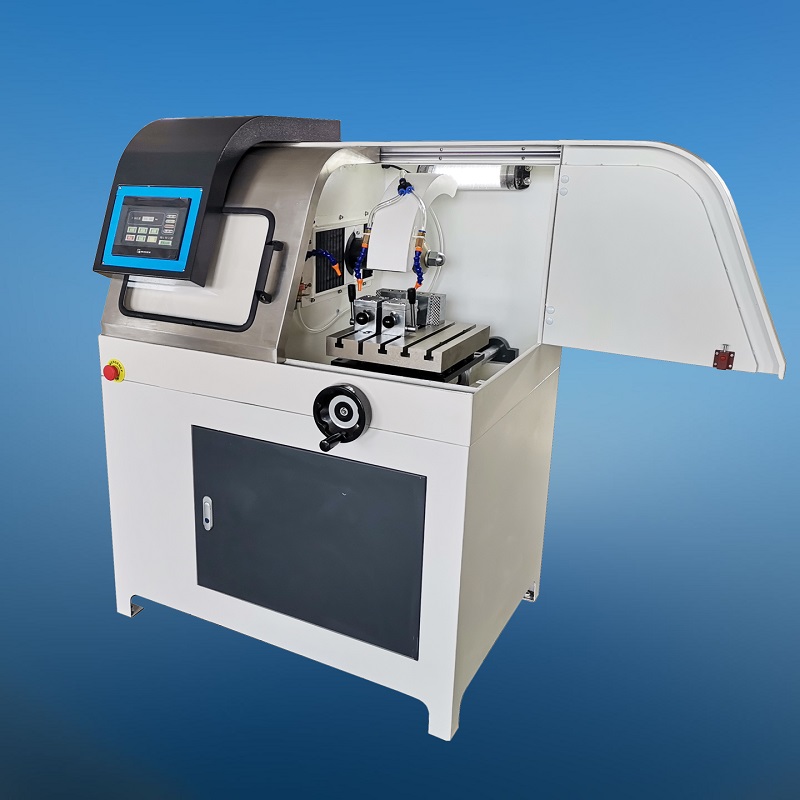

MODEL AUTOCUT 100B
MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE
Model AUTOCUT
100B manual / automatic metallographic specimen cutting machine is equipped with
big cutting room and movable T-shape work table. Therefore this machine has the
ability of cutting rectangle and large specimens. Also the equipped separate
type vice is very convenient for operator to clamp various heterotypic work
pieces. It is the ideal metallographic specimen preparation equipment to be used
in factories, colleges and researching institutes.
Features
-

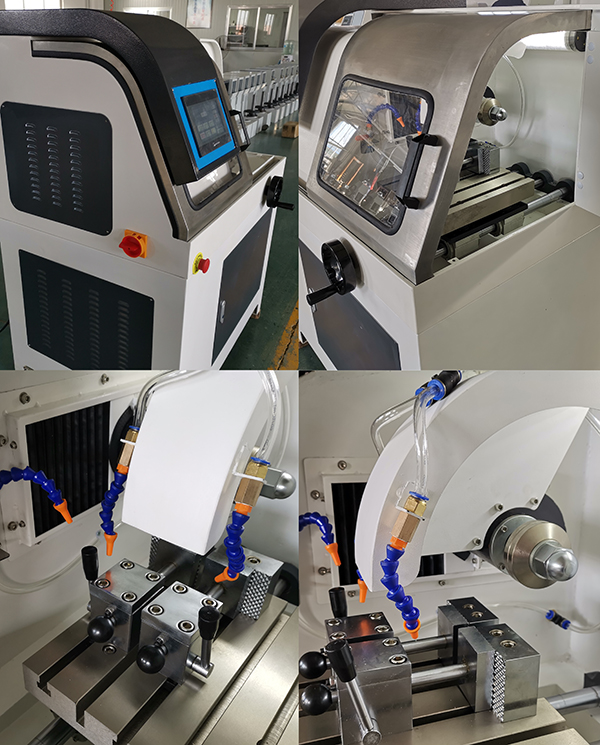

New
side slipping gate design, which has increased the water-proof performance
greatly. Stainless steel front chamber gate which never rust. The new open
chamber structure and appearance design make the machine more beautiful and
practical.
-
Full
touch screen and PLC controlling system, which make the operation easy and
efficient.
-
Equipped with effective quick clamping vice.
-
The
machine can preset the cutting speed according to different specimens, this
will improve the cutting performance and quality of specimen.
-
Recirculating cooling system can help to cool down the specimen during
cutting process so as to avoid burning damage to the organization.
-
The
machine can be operated in manual cutting mode or automatic cutting mode.
-
Various cutting data can be displayed on high definition
touch type LCD screen.
-
Delay cutting (for large and hard specimen) and continuous
cutting (for small and soft specimen) can be selected.
-
Automatic withdraw function after cutting is finished
-
Equipped with 60L cooling liquid water tank.
Technical specifications
Max. cutting diameter: Ø100mm
Max. Cutting volume: 100mm x 200mm
Main shaft rotating speed: 500-2800 rpm stepless speed adjusting
Automatic cutting speed: 0.1-3.0mm/min. (0.1mm/min. increment)
Sand wheel specification: 350 x 2.5 x 32mm
Worktable size: 310mm x 280mm
Motor power: 3KW
Power supply: 380V, 50Hz, three phases
Dimensions: 965 x 750 x 1300mm
Net
weight: 280 KG
|
