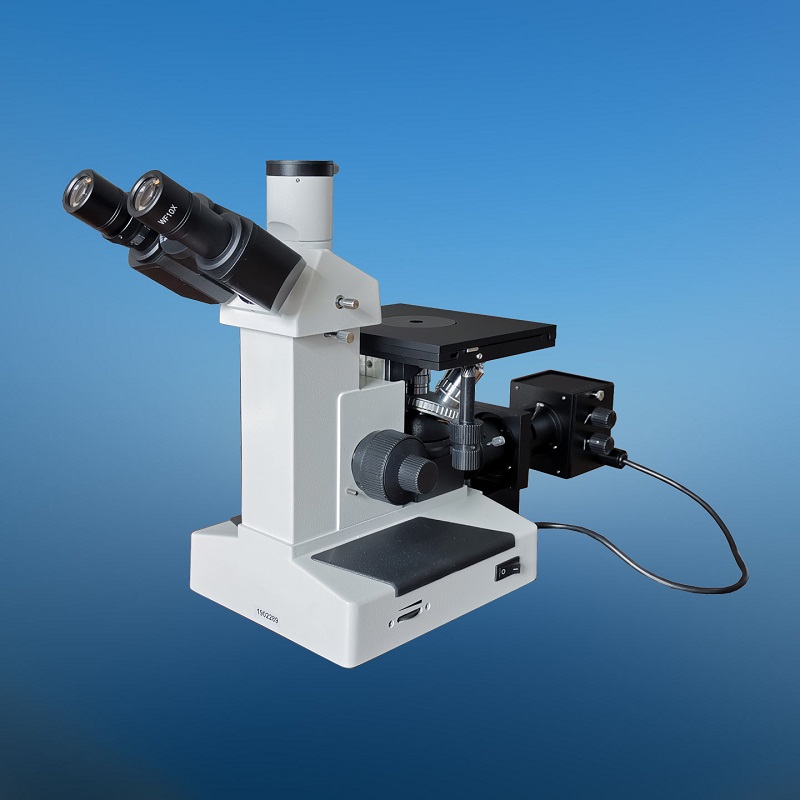

MODEL 4XC INVERTED METALLOGRAPHIC MICROSCOPE
Model 4XC series metallurgical microscopes are used for
identification and analysis of the structures in different metals and alloys.
They are the important instruments for researching metallography in metal
physics. The instruments can select special photography device to take euploid
pictures of atlas metallograph. The instruments are suitable for scientific
research, colleges and factory.
Features
-
With plan achromatic objectives with long working distance
(no cover glass) and wide-field eyepieces, can get clear pictures and wide
view field.
-
Coaxial coarse/fine focus system, with tension adjustable and
up stop, minimum division of fine focusing: 2μm.
-
6V 20W halogen lamp, brightness control.
-
Trinocular is compensation, can switch to observe normally or
to observe the Polarize, can send 100% of light to top photography port.
Standard Configuration
|
Model |
4XC |
4XC-B |
|
Eyepiece |
Wide field WF10X(Φ18mm) |
|
Objective |
Plan achromatic objectives with long working distance
(no cover glass)
PL 10X/0.25 |
Achromatic objectives(no cover glass) 10X/0.25 |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL L20X/0.40 |
Achromatic objectives(no cover glass) 20X/0.40 |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL L40X/0.60 |
Achromatic objectives(no cover glass)
SP 40X/0.65 |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL 100X/1.25(Spring, oil) |
Achromatic objectives(no cover glass)
100X/1.25(Spring, oil) |
|
Eyepieces tube |
Trinocular, Inclination of 30˚ |
|
Filter |
Frosted filter |
|
Blue filter |
|
Green filter |
|
Yellow filter |
|
Focus system |
Coaxial coarse/fine focus system, with tensional
adjustable and up stop, minimum division of fine focusing: 2μm. |
|
Nosepiece |
Quadruple(Ball bearing inner locating) |
|
Stage |
Double layer mechanical (Size:180mmX150mm,moving
range:15mmX15mm) |
|
Illumination unit |
6V 20W halogen lamp, brightness control. |

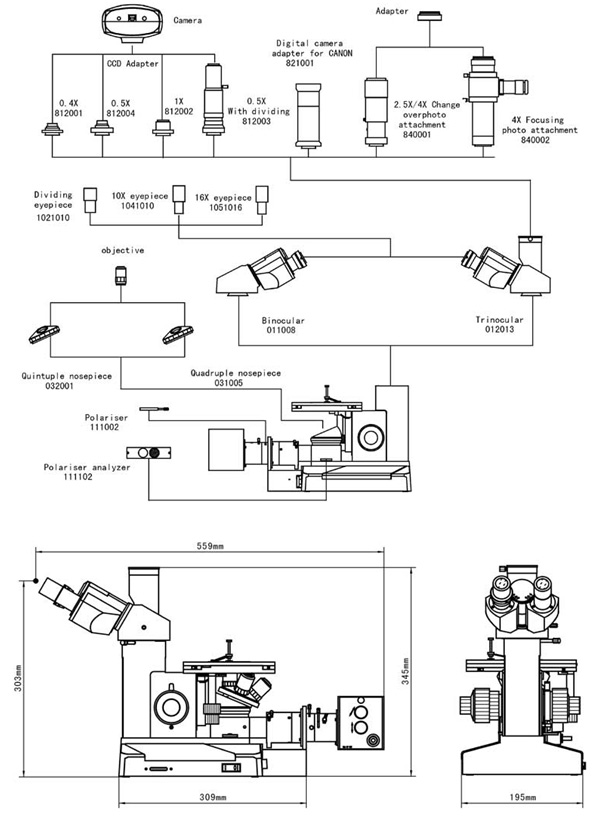

Optional accessories
|
Name |
Sort/Technique parameter |
|
Eyepiece |
Wide field WF16X(Φ11mm) |
|
Dividing 10X(Φ18mm) 0.1mm/Div |
|
Objective |
Plan achromatic objectives with long working distance
(no cover glass)
PL 5X/0.12 |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL L 60X/0.75(Spring) |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL L 100X/0.85 (Spring) |
|
Achromatic objectives(no cover glass) 60X/0.85 |
|
Eyepieces tub |
Binocular, Inclination of 30˚ |
|
Nosepiece |
Quintuple(Ball bearing inner locating) |
|
Simple polarizing unit |
Polariser |
|
Polarization analyzer |
|
CCD adapter |
0.4X |
|
0.5X |
|
1X |
|
0.5X with dividing 0.1mm/Div |
|
Camera |
DV-1 With USB & video output |
|
DV-2 With USB output |
|
DV-3 With video output |
|
Photo unit |
2.5X/4X Change over photograph attachment with 10X
viewing eyepiece |
|
4X Focusing photograph attachment |
|
MD Adapter |
|
PK Adapter |
|
Digital camera adapter |
CANON(A610,A620,A630,A640) |
 |
|
