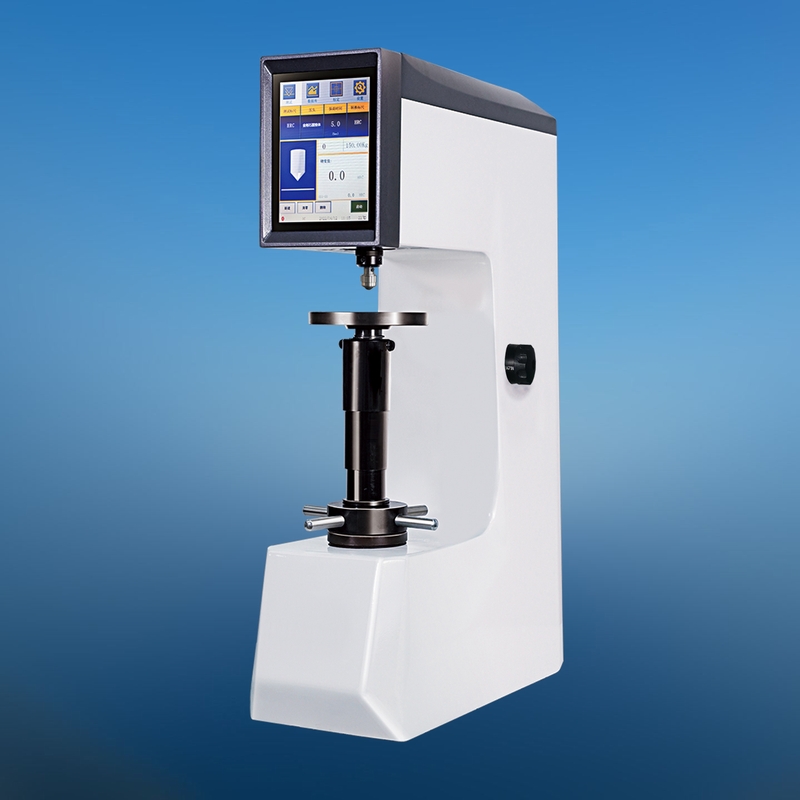

MODEL 300XHRS-150TM
TOUCH SCREEN DIGITAL DISPLAY
PLASTIC ROCKWELL HARDNESS
TESTER
Feature & Use:
-
Large 8”
touch screen, direct visual display and interactive operating interface.
-
High speed ARM processor,
fast operation speed and extensive database storage.
-
High quality integral casting
cast iron machine body with automotive paint treatment process, the
appearance is smooth and beautiful.
-
Equipped with digital
temperature measurement circuit which can guarantee long-term work, stable
and reliable.
-
Automatic correction for
hardness measurement of cylindrical surface and spherical surface.
-
The maximum and minimum
hardness values can be set, when the test value exceeds the set range, an
alarm sound will be issued.
-
Automatic hardness value
correction, the hardness value can be directly corrected within a certain
range.
-
With the database function,
the test data can be saved automatically in groups, each group can save 10
data, totally can save more than 2000 data.
-
With the hardness value curve
display function, intuitive display the changes of hardness value.
-
The database can
automatically record the scale, test force, hardness values, temperature and
other parameters.
-
The system can automatically
calculate the maximum, minimum and average hardness values of each group.
-
Convenient control system can
automatically convert the unit of full hardness scales.
-
Equipped with wireless
blue-tooth printer, the data can be output through RS232 and USB interface
port.
-
Precision conforms to
GB/T230.2, ISO6508-2 and ASTM E18.
It’s suitable to determine the Plastic Rockwell hardness of plastic, composite
materials, all kinds of friction materials, soft metals and non-metal soft
materials. It features wide application range, easy operation, good economy and
practicality.
Main interface
Specifications
Measuring range: 70-100HREW,
50-115HRLW, 50-115HRMW, 50-115HRRW
Test force: 588.4, 980.7, 1471N
(60, 100, 150kgf)
Max. height of test piece: 220mm
Depth of throat: 170mm
Min. scale value: 0.1HR
Dwelling time: 1~99s
Power supply: 220V AC or 110V AC,
50 or 60Hz
Dimensions: 520 x 290 x 800mm
Weight: approx. 80kg
Standard
accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
1/8”, 1/4”, 1/2” Tungsten carbide
ball penetrator: 1 pc. for each
Plastic Rockwell standardized
block: 4 pcs. |
|
