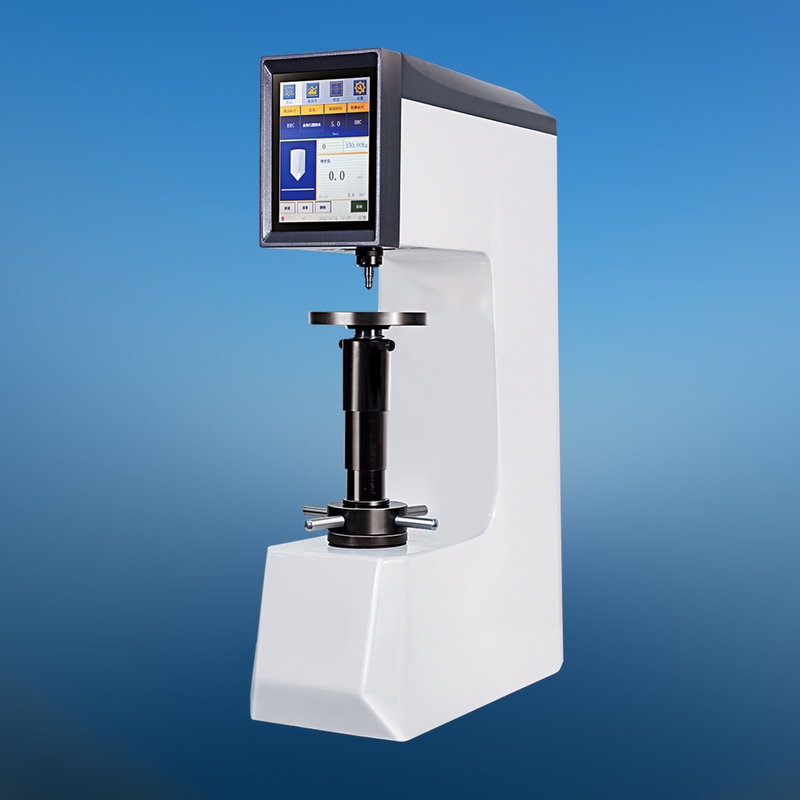

MODEL 300HRSS-150t TOUCH SCREEN
DIGITAL DISPLAY ROCKWELL &
SUPERFICIAL ROCKWELL HARDNESS TESTER
Feature & Use:
-
This 300HRSS-150T full scale
digital display Rockwell hardness tester integrates Rockwell, Superficial
Rockwell and plastic Rockwell in one machine. It adopts 8” large touch
screen and high-speed ARM processor, direct visual display, friendly
man-machine interaction, easy operation.
-
High
quality integral casting cast iron machine body, with automotive paint
treatment process, the appearance is smooth and beautiful.
-
The measuring device adopt
grating displacement sensor, the test results are displayed on the LCD
screen, the test scale, test force, indenter type, holding time and the
conversion unit can be displayed and set.
-
The electric loading without
weights, closed-loop control, automatic loading, holding and unloading of
the test force.
-
The built-in test software
can correct the measuring results automatically.
-
Built-in hardness conversion
system, automatic hardness conversion between full hardness scales.
-
Built-in printer, data output
through RS232 or USB interface.
-
Accuracy is in line with
GB/T230.2, ISO6508-2 and American ASTM E18 standard.
It's suitable to determine the Rockwell & Superficial Rockwell hardness of
ferrous metals, alloy steel and hard alloy, as well as treated layers of metal
surface, such as carburized layer, nitrided layer and electroplated coating,
etc.
Main interface
Specifications
Measuring range: 20-95HRA,
10-100HRBW, 20-70HRC
70-94HR15N, 67-93HR15TW, 42-86HR30N,
29-82HR30TW, 20-77HR45N, 10-72HR45TW
Test force: Rockwell 588.4,
980.7, 1471N (60, 100, 150kgf)
Superficial Rockwell 147.1, 294.2, 441.3N (15, 30, 45kgf)
Max. height of test piece: 220mm
Depth of throat: 170mm
Hardness resolution: 0.1HR
Dwelling time: 1~99s
Power supply: 220V AC or 110V AC,
50 or 60Hz
Dimensions: 520 x 290 x 800 mm
Weight: approx. 80kg
Standard
accessories
Large flat anvil: 1
pc.
Small flat anvil: 1
pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16" steel ball penetrator: 1
pc.
Rockwell standardized block: 5
pcs.
Superficial Rockwell standardized
block: 4 pcs.
|
|
