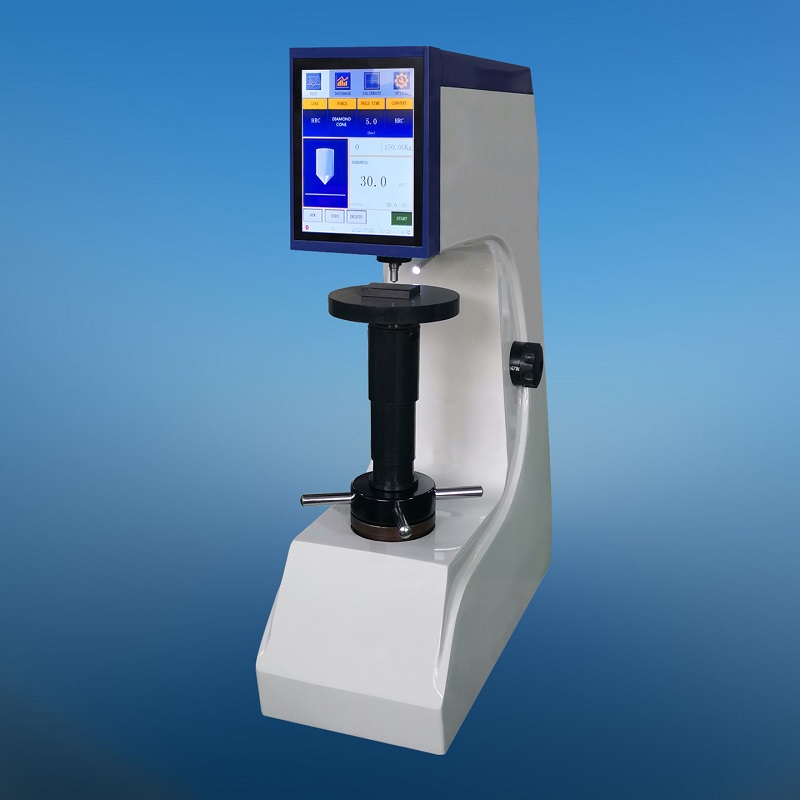

MODEL 200HRS-150TM
TOUCH SCREEN DIGITAL DISPLAY ROCKWELL
HARDNESS TESTER
Feature & Use:
-
Manual
type test force changeover handle.
-
Large 8” touch screen, direct
visual display and interactive operating interface.
-
High speed ARM processor,
fast operation speed and extensive database storage.
-
High quality integral casting
cast iron machine body with automotive paint treatment process, the
appearance is smooth and beautiful.
-
Equipped with digital
temperature measurement circuit which can guarantee long-term work, stable
and reliable.
-
Automatic correction for
hardness measurement of cylindrical surface and spherical surface.
-
The maximum and minimum
hardness values can be set, when the test value exceeds the set range, an
alarm sound will be issued.
-
Automatic hardness value
correction, the hardness value can be directly corrected within a certain
range.
-
With the database function,
the test data can be saved automatically in groups, each group can save 10
data, totally can save more than 2000 data.
-
With the hardness value curve
display function, intuitive display the changes of hardness value.
-
The database can
automatically record the scale, test force, hardness values, temperature and
other parameters.
-
The system can automatically
calculate the maximum, minimum and average hardness values of each group.
-
Convenient control system can
automatically convert the unit of full hardness scales.
-
Equipped with wireless
blue-tooth printer, the data can be output through RS232 or USB interface.
-
Precision conforms to
GB/T230.2, ISO6508-2
and ASTM E18.
It’s a
kind of touch screen digital display type Rockwell hardness tester. It’s suitable
to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal
materials. It features wide application range, easy operation, good economy and
practicality. It can be widely applied in the Rockwell hardness testing for heat
treatment materials, such as quenching, hardening and tempering, etc.

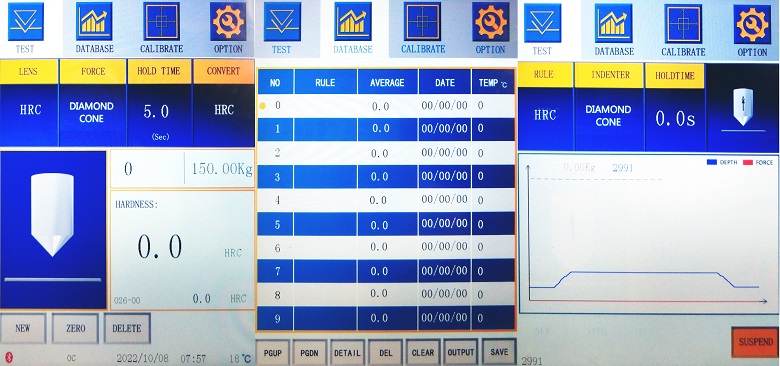

Main interface
Specifications
Measuring range: 20-95HRA,
10-100HRBW, 20-70HRC
Test force: 588.4, 980.7, 1471N
(60, 100, 150kgf)
Max. height of test piece: 200mm
Depth of throat: 160mm
Min. scale value: 0.1HR
Dwelling time: 1~99s
Power supply: AC 220V or 110V, 50
or 60Hz
Dimensions: 510 x 290 x 730mm
Weight: approx. 80kg
Standard
accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc
1/16” Tungsten carbide ball
penetrator: 1 pc.
Rockwell standardized block: 5
pcs.
|
|
