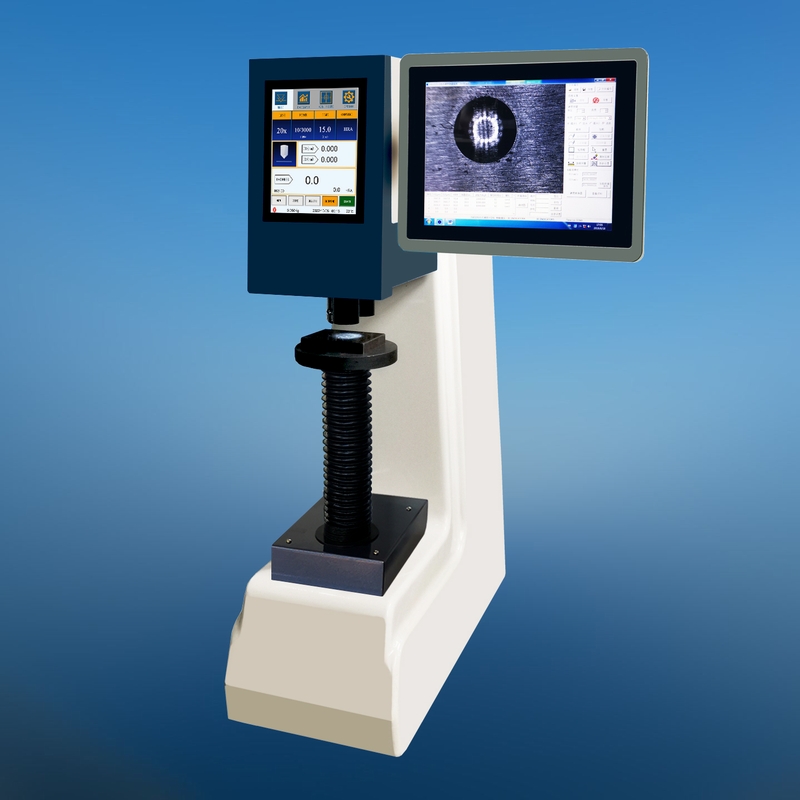

MODEL 200HBS-3000TZP
AUTOMATIC DIGITAL
DISPLAY BRINELL HARDNESS TESTER
Feature & Use
-
Automatic work table elevating
-
Integrated with industrial tablet PC, built-in
industrial grade CCD camera
-
Equipped with Brinell CCD image processing
system, directly display indentation image and testing data on screen, and
finish manual or automatic measurement to the image.
-
Automatic turret shifting between indenter and
lens.
-
Equipped with twin high definition objective
lens
-
Electric loading without weights, closed loop
control.
-
Large 8” touch screen, direct visual display and
interactive operating interface.
-
High speed ARM processor, fast operation speed
and extensive database storage.
-
High quality integral casting cast iron machine
body with automotive paint treatment process, the appearance is smooth and
beautiful.
-
Built-in hardness conversion scales, which can
realize full hardness scale conversion.
-
The maximum and minimum hardness values can be
set, when the test value exceeds the set range, an alarm sound will be
issued.
-
Automatic hardness value correction, the
hardness value can be directly corrected within a certain range.
-
With the database function, the test data can be
saved automatically in groups, each group can save 10 data, totally can save
up to 2000 data.
-
With the hardness value curve display function,
intuitively display the changes of hardness value.
-
Equipped with wireless blue-tooth printer, the
data can be output through RS232 or USB interface.
-
Precision conforms to GB/T 231.2, ISO 6506-2 and
ASTM E10
It’s
suitable to determine the Brinell hardness of unquenched steel, cast iron,
non-ferrous metals and soft bearing alloys, etc.
Main interface
Specifications
Measuring range: 5-650HBW
Test force: 31.25, 62.5, 100, 125, 187.5, 250, 500,
750, 1000, 1500, 3000kgf
(306.25, 612.9, 980.7, 1225.9, 1838.8, 2415.8,
4903.5, 7355.3,
9807, 14710.5, 29421N)
Max. height of test piece: 260mm
Depth of throat: 165mm
Hardness resolution: 0.1 HBW
Min. measuring unit: 0.625μm
Eyepiece magnification: 20X
Objective lens magnification: 1X, 2X
Total magnification: 20X, 40X
Dwelling time: 1~99s
Power supply: AC 220V or 110V, 50 or 60Hz
Dimensions: 700 x 268 x 930mm
Weight: approx. 160kg
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1
pc. for each
Brinell standardized block: 2 pcs.
|
|
