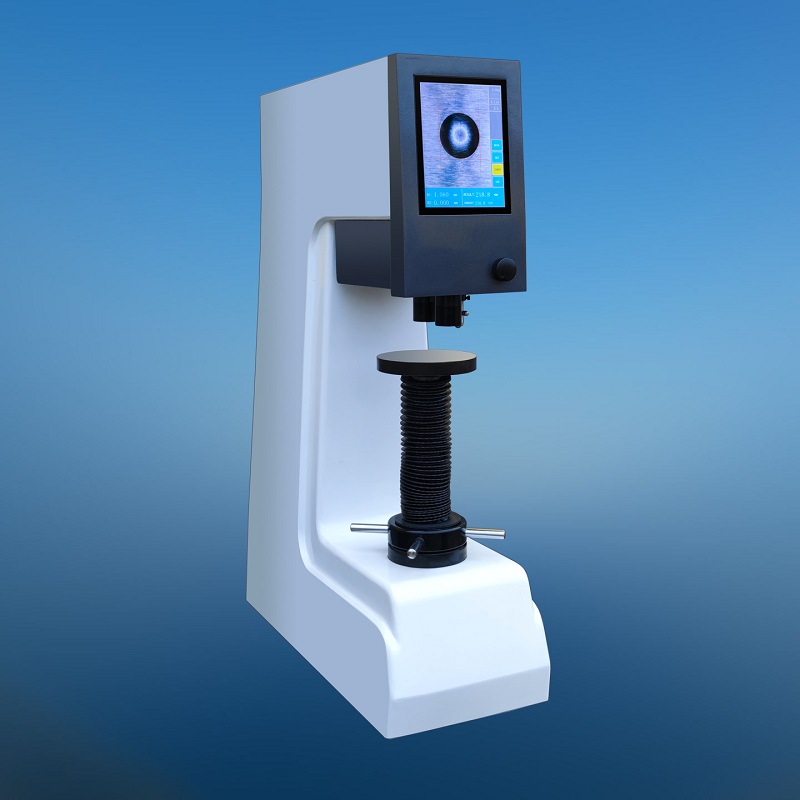

MODEL 200HBS-3000TAP
AUTO TURRET TOUCH SCREEN VISUAL DIGITAL
DISPLAY BRINELL HARDNESS TESTER
Feature & Use
-
Large 8” high definition touch screen
-
Direct visual display of indentation image on
LCD screen and interactive operating interface, the parameter setting and
hardness measurement are more intuitive.
-
Built-in high definition CCD camera.
-
Automatic turret shifting between indenter and
lens, more convenient for operation.
-
Equipped with double high definition objective
lens, suitable for measurement of different diameter indentations.
-
Electric loading without weights, closed loop
control.
-
High speed ARM processor, fast operation speed
and extensive database storage.
-
High quality integral casting cast iron machine
body with automotive paint treatment process, the appearance is smooth and
beautiful.
-
Built-in hardness conversion scales, which can
realize full hardness scale conversion.
-
The maximum and minimum hardness values can be
set, when the test value exceeds the set range, an alarm sound will be
issued.
-
Automatic hardness value correction, the
hardness value can be directly corrected within a certain range.
-
With the database function, the test data can be
saved automatically in groups, each group can save 10 data, totally can save
up to 2000 data.
-
With the hardness value curve display function,
intuitively display the changes of hardness value.
-
Equipped with wireless blue-tooth printer, the
data can be output through RS232 or USB interface.
-
Precision conforms to GB/T
231.2, ISO 6506-2 and ASTM E10
It’s
suitable to determine the Brinell hardness of unquenched steel, cast iron,
non-ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range:
5-650HBW
Test force: 187.5, 250,
500,
750, 1000,
1500,
3000kgf
(1838.8,
2415.8,
4903.5,
7355.3,
9807,
14710.5, 29421N)
Max. height of test piece: 260mm
Depth of throat: 165mm
Hardness resolution:
0.1 HBW
Min. measuring unit: 0.625μm
Eyepiece
magnification: 20X
Objective lens
magnification: 1X, 2X
Total magnification:
20X, 40X
Dwelling time: 1~99s
Power supply:
Single phase,
AC 220V or 110V, 50 or
60Hz
Dimensions: 700 x 268 x
930mm
Weight: approx.
160kg
Standard accessories
Large flat
anvil: 1 pc.
Small flat
anvil: 1 pc.
V-notch
anvil: 1 pc.
Tungsten carbide
ball
penetrator: Φ2.5, Φ5, Φ10mm, 1
pc.
for
each
Brinell
standardized block: 2 pcs.
|
|
