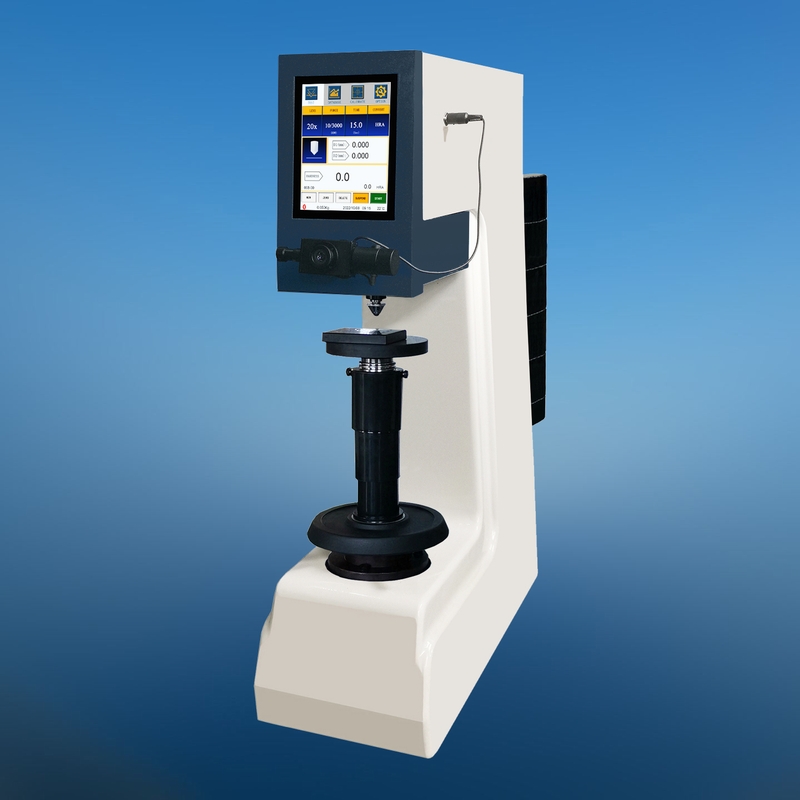

MODEL HBS-3000T

TOUCH SCREEN DIGITAL DISPLAY BRINELL HARDNESS TESTER



Feature & Use

  • Test force loading by weights, the testing is accurate, reliable and durable, high testing efficiency.

  • Large 8” touch screen, direct visual display and interactive operating interface.

  • High speed ARM processor, fast operation speed and extensive database storage.

  • High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.

  • Built-in hardness conversion scales, which can realize full hardness scale conversion.

  • The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.

  • Automatic hardness value correction, the hardness value can be directly corrected within a certain range.

  • With the database function, the test data can be saved automatically in groups, each group can save 10 data, totally can save more than 2000 data.

  • With the hardness value curve display function, intuitively display the changes of hardness value.

  • Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.

  • CCD image processing system or video measuring apparatus is optional.

  • Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10



        It’s suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.





Main interface



 Specifications



Measuring range: 5-650HBW

Test force: 187.5, 250, 500, 750, 1000, 1500, 3000kgf

                  (1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N)

Hardness resolution: 0.1 HBW

Min. measuring unit: 5μm

Eyepiece magnification: 20X

Objective lens magnification: 1X

Total magnification: 20X

Max. height of test piece: 280mm

Depth of throat: 165mm

Dwelling time: 1~99s

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 700 x 268 x 930mm

Weight: approx. 210kg



Standard accessories



Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. for each

Brinell standardized block: 2 pcs.
