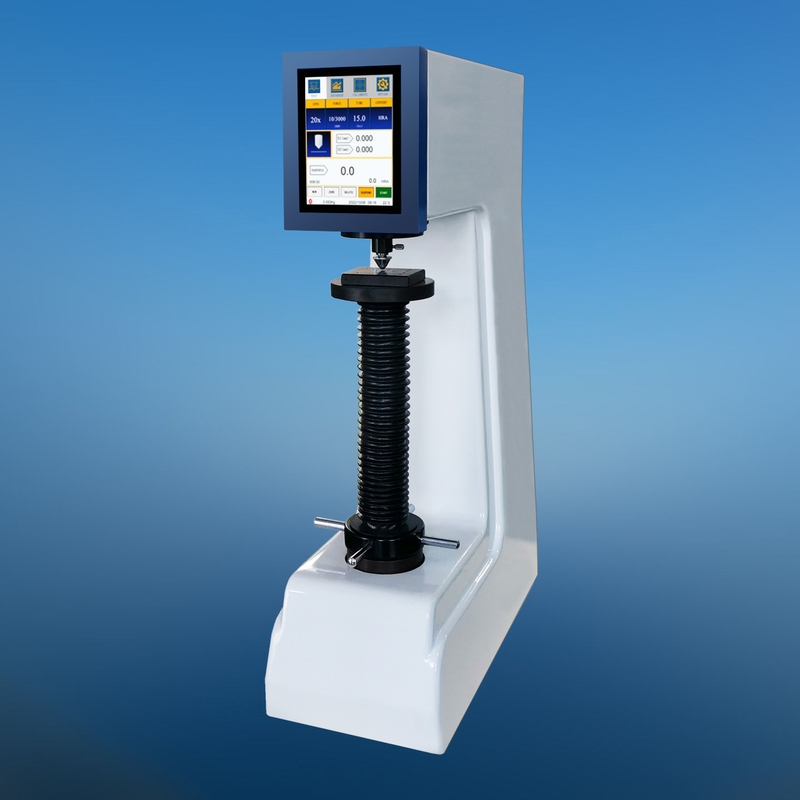

MODEL 200HB-3000C ELECTRONIC BRINELL HARDNESS TESTER

Feature & Use

• Electric loading without weights, closed loop control.

• Large 8” touch screen, direct visual display and interactive operating interface.

• High quality integrated cast iron machine body, high rigidity, with the automotive paint treatment process, the appearance is smooth and beautiful.

• Automatic protection for overloading & over-position

• Input D1 & D2 values from touch screen to get Brinell hardness value directly.

• Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.

• Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

        It’s suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Specifications

Measuring range: 5-650HBW

Test force: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf

                  (612.9, 980.7, 1225.9, 1838.8, 2415.8, 4903.5, 7355.3,

9807, 14710.5, 29421N)

Hardness resolution: 0.1 HBW

Min. measuring unit: 0.625μm

Max. height of test piece: 330mm

Depth of throat: 165mm

Dwelling time: 1~99s

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 700 x 268 x 930mm

Weight: approx. 160kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. for each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.
